THE GABLES SERIES — NerdQX 8.1 TH/s

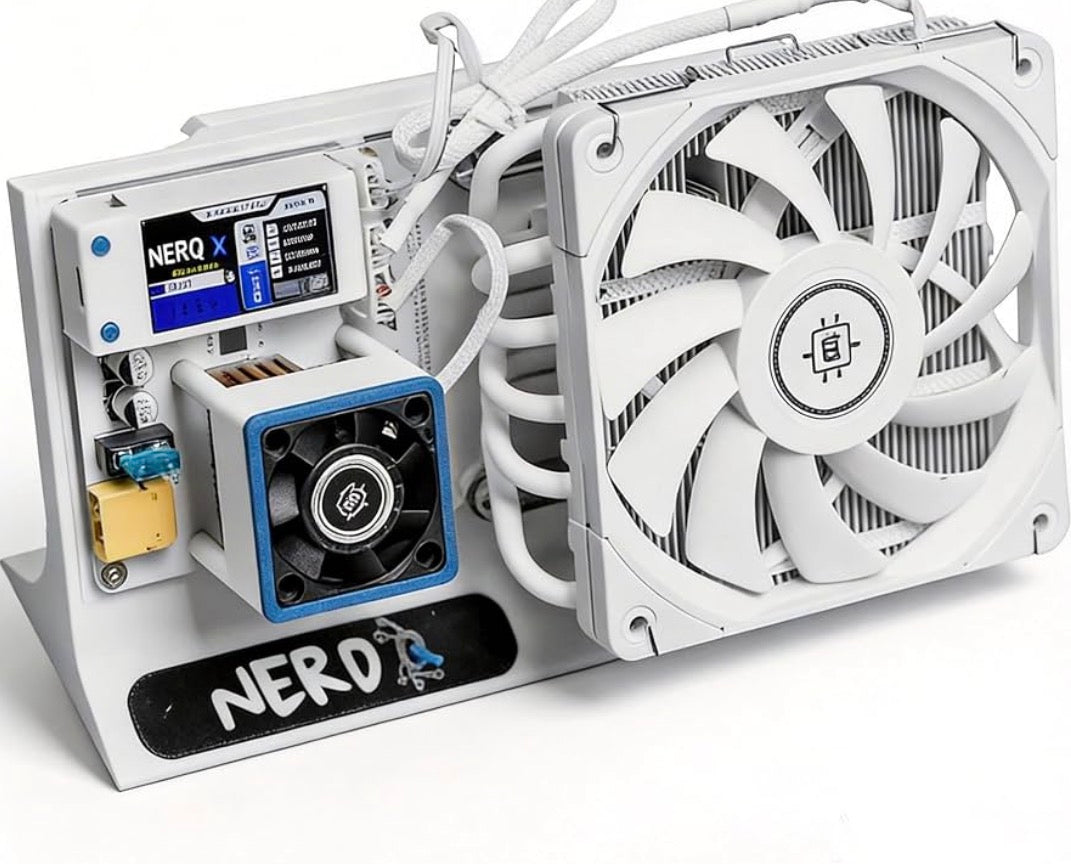

NerdQX (8.1 TH/s) — Miami Bitcoin NerdMiner's dual-fan air-cooled home miner. A 120mm fan sits over the heatsink covering all 4× BM1370 chips, with a dedicated second fan for the VRMs — serious thermal management without going liquid.

Technical Specifications

• Hash Rate: 8.1 TH/s
• Power Consumption: 138W
• Efficiency: 0.017 J/GH (17 J/TH)
• Algorithm: SHA-256
• Supported Coins: BTC, BCH, BSV, NMC, XEC, PPC, FB
• Chip: BM1370 (7nm), Qty 4
• Cooling: Dual-fan air (120mm chip heatsink fan + dedicated VRM fan)
• Connectivity: WiFi 2.4GHz, NerdX control panel remote monitoring
• Input Voltage: 100–240V AC (12V 18A adapter, 4.0A input)
• Noise Level: ~40dB
• Dimensions (LxWxH): 22 x 12 x 15 cm
• Net Weight: 1010g

Note: All specifications are based on standard operating conditions. Actual results may vary based on network difficulty, electricity costs, and mining pool performance.
