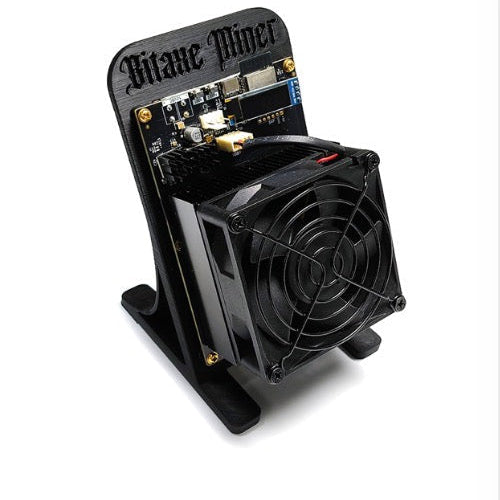

THE BRICKELL SERIES — Bitaxe Supra Hex 701

The Bitaxe Supra Hex 701 puts six state-of-the-art BM1366 ASIC chips on a single board, delivering 4.2+ TH/s in a compact desktop package. It features a 7-channel temperature monitoring system, Transient Voltage Suppressor (TVS) diodes for power stability, and a high-RPM fan for aggressive cooling in warmer environments.

This is the miner for the serious home enthusiast — not industrial, but not entry-level either. The Supra Hex is where hobby becomes craft.

Specs:
ASIC Chip: 6x BM1366
Hashrate: 4.2+ TH/s
Power Consumption: ~90W
Connectivity: 2.4 GHz Wi-Fi
Firmware: AxeOS
Cooling: High-RPM fan (6500 RPM capable)
Thermal Monitoring: 7-channel system
Power Input: 12V DC

Setup Guide: Same as Gamma 601 above. Uses 12V DC power supply.

Note: Fan activates immediately upon power connection. Keep hands clear of fan on startup.
